Vintage VOX Jaguar

Carried out on behalf of KORG UK

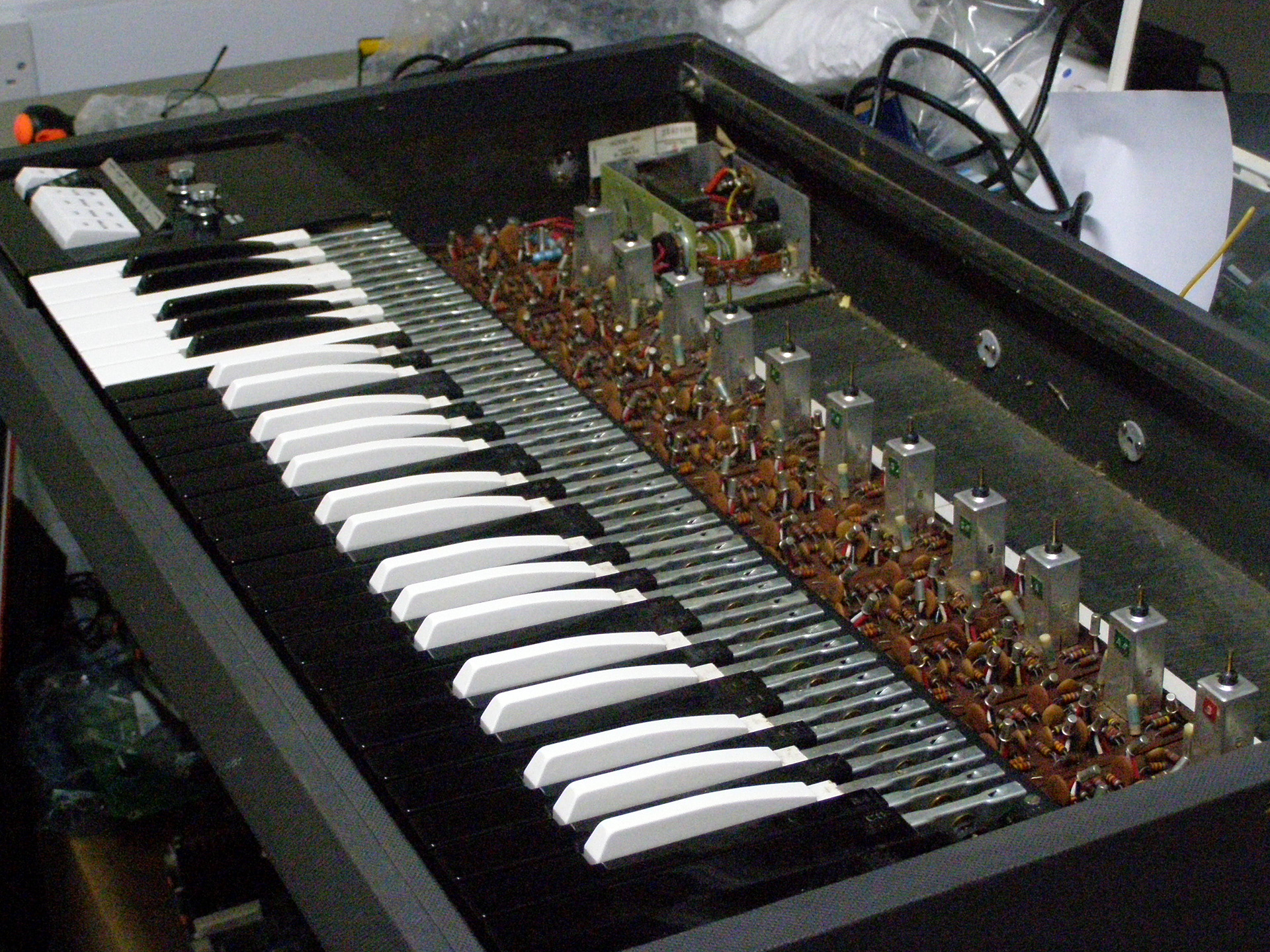

Stripping down old VOX Jaguar
Stripping down old VOX Jaguar

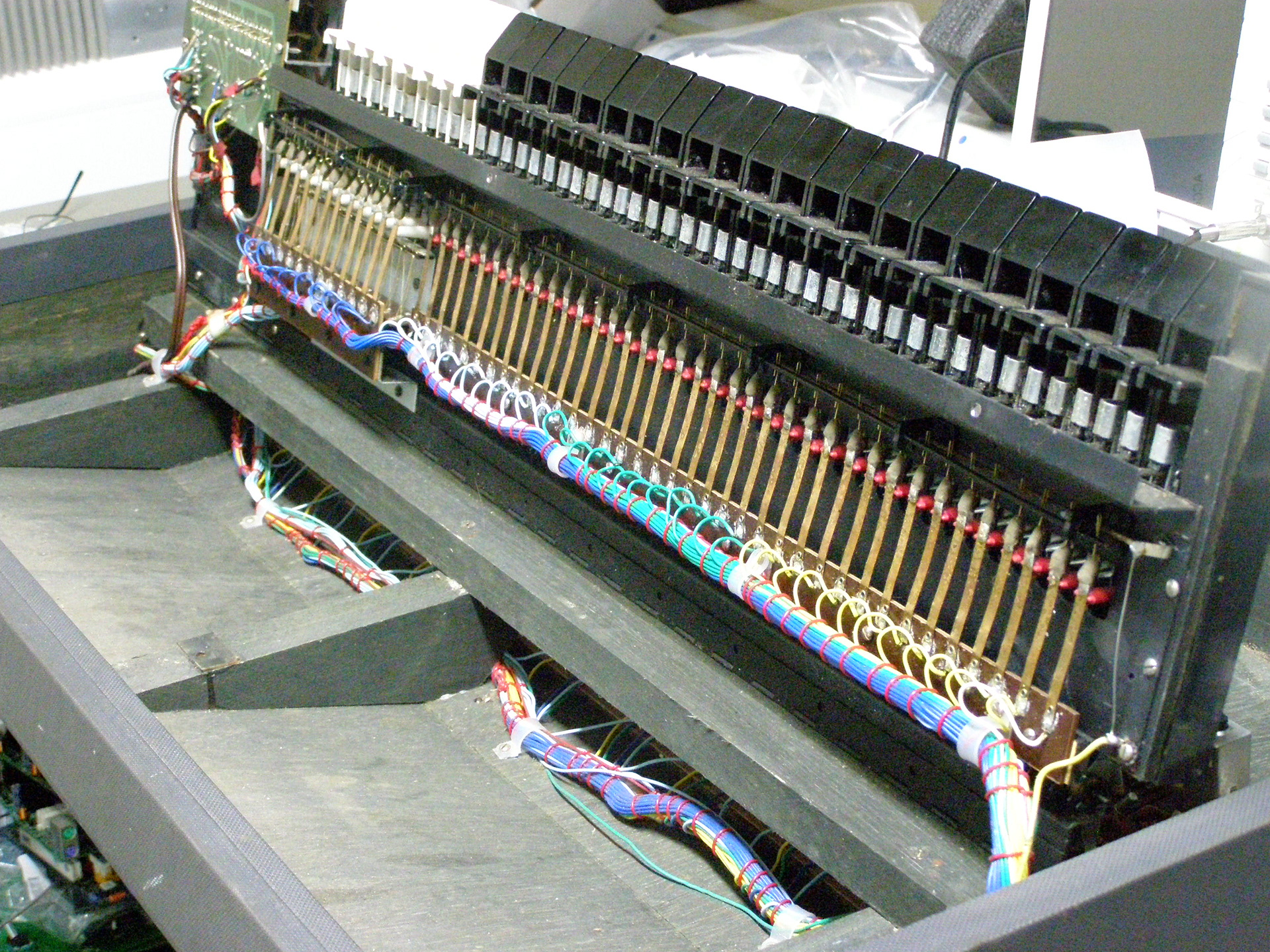

Inspection of key assembly
Inspection of key assembly

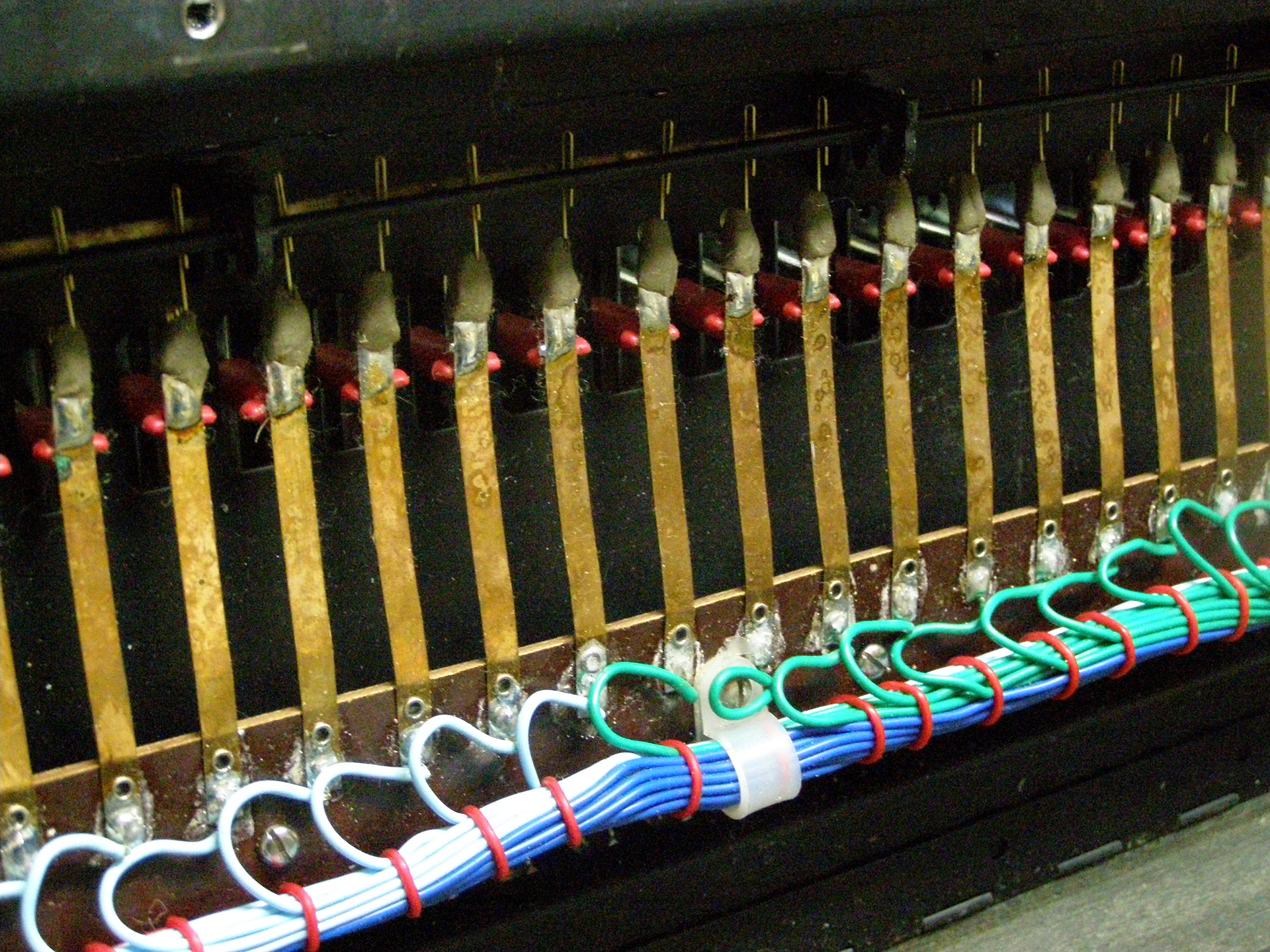

Inspection of key assembly ready for cleaning
Inspection of key assembly ready for cleaning

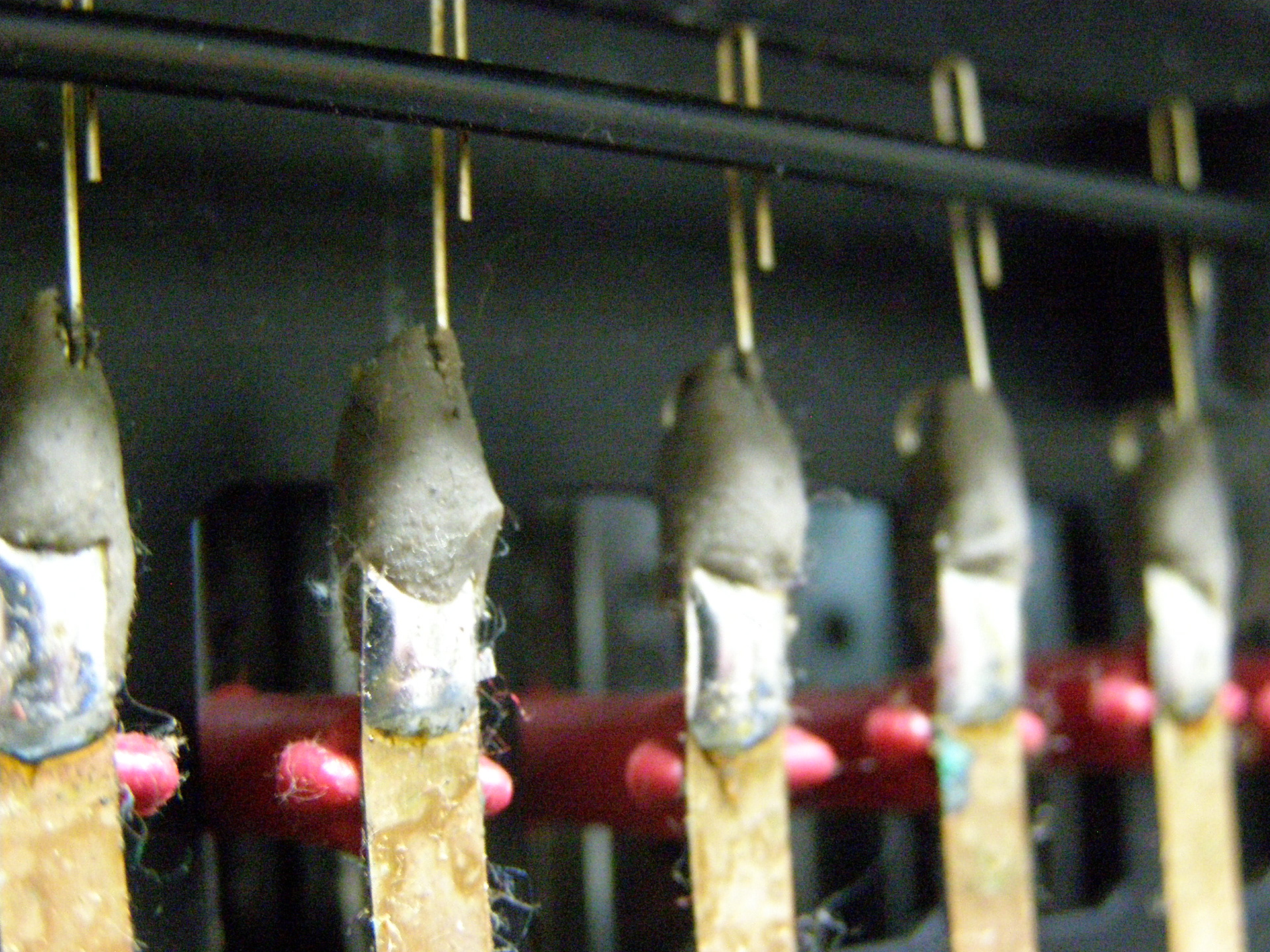

Closeup of key contacts
Closeup of key contacts

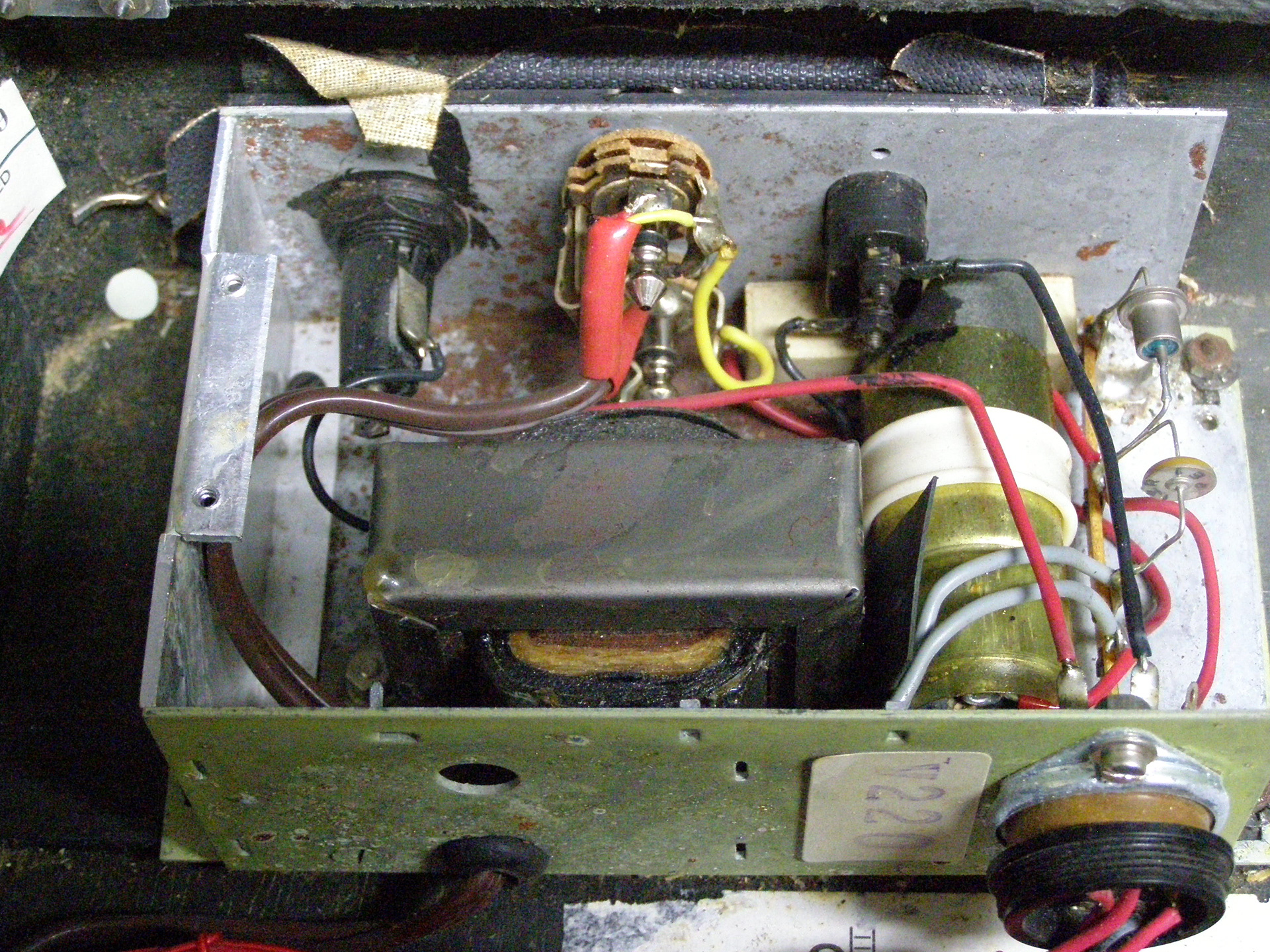

Old 120v power supply
Old 120v power supply

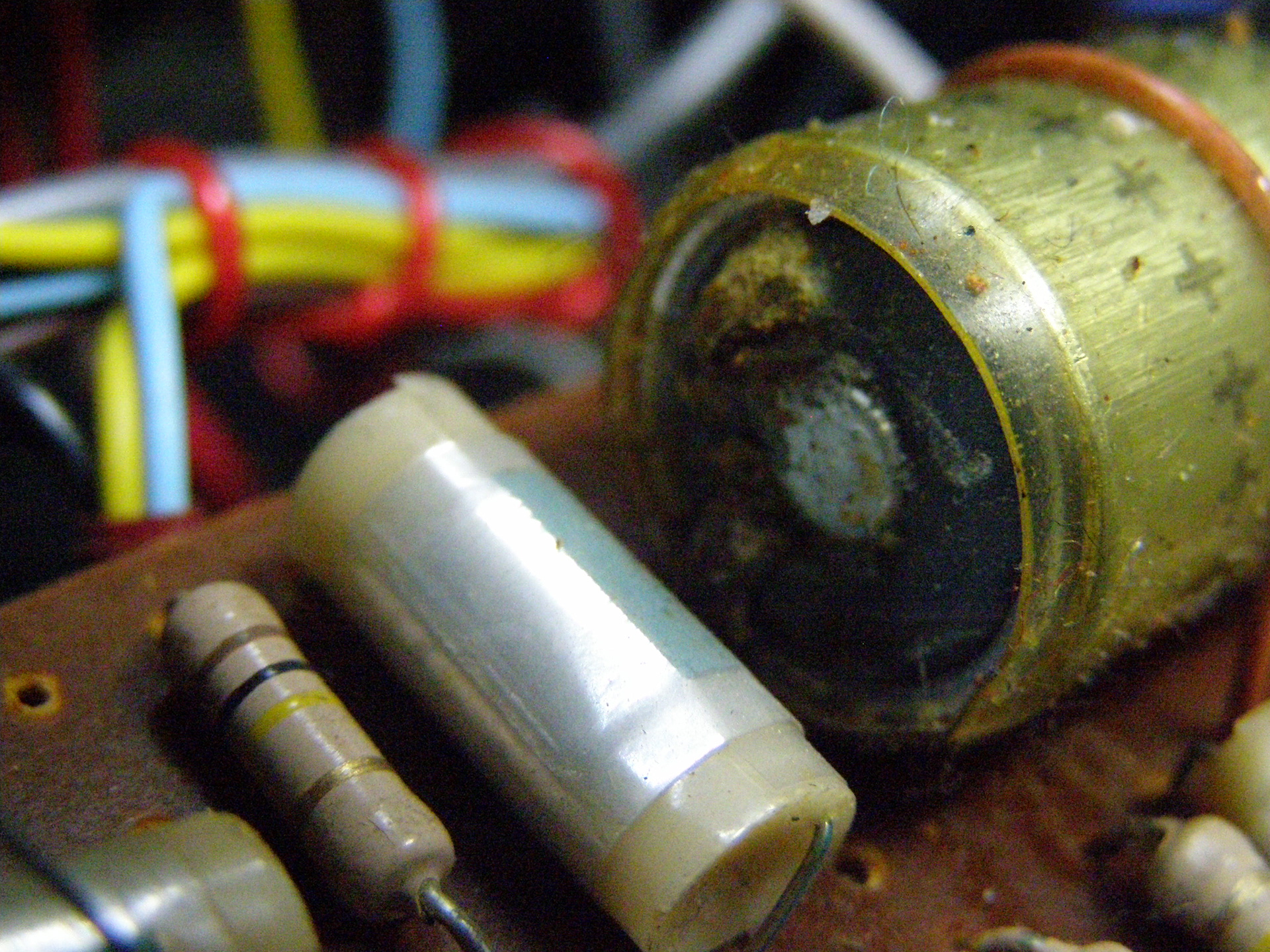

Old capacitors to be replaced with new versions
Old capacitors to be replaced with new versions

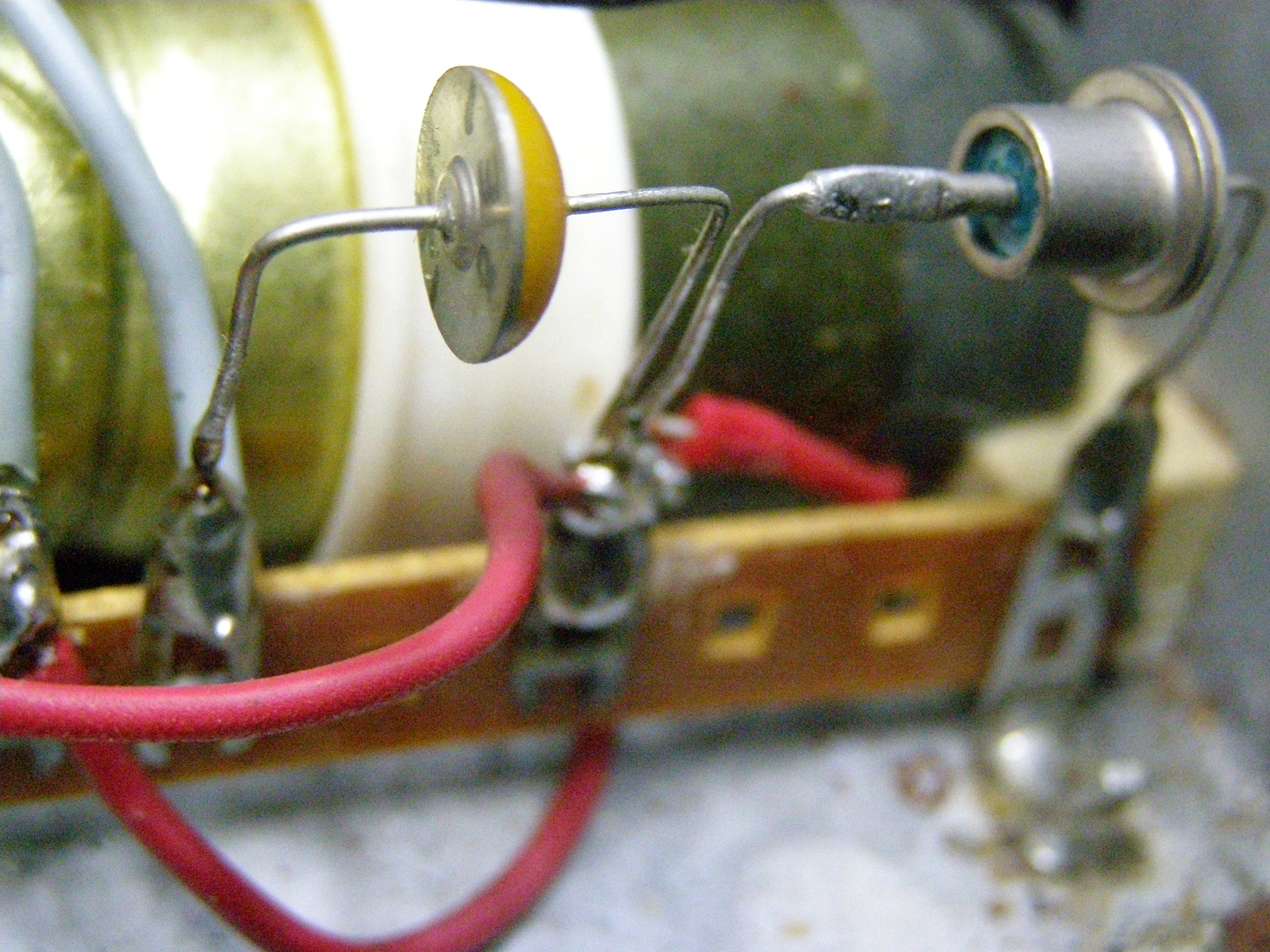

Old components ready to be replaced
Old components ready to be replaced

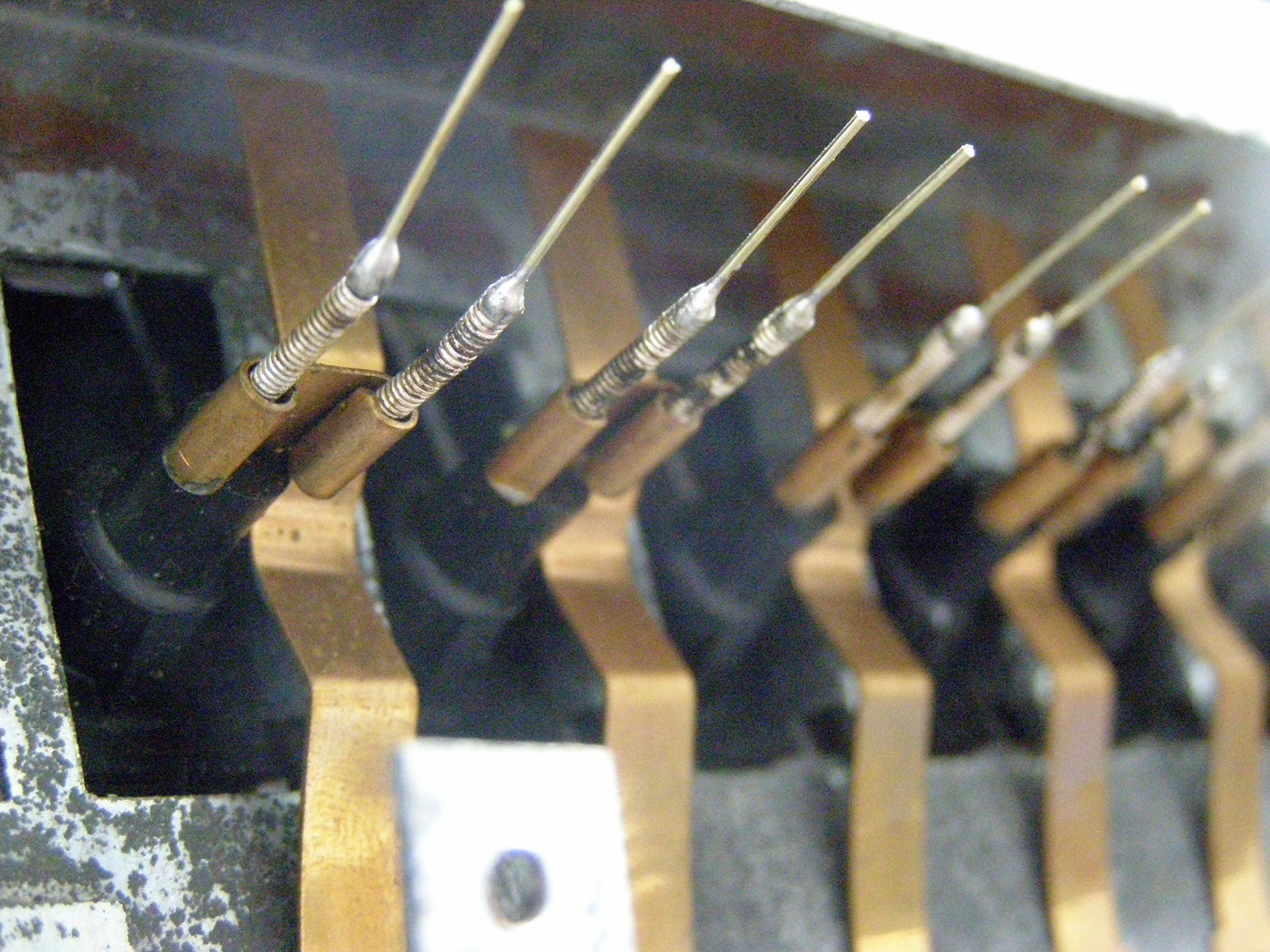

Old style switch contacts
Old style switch contacts

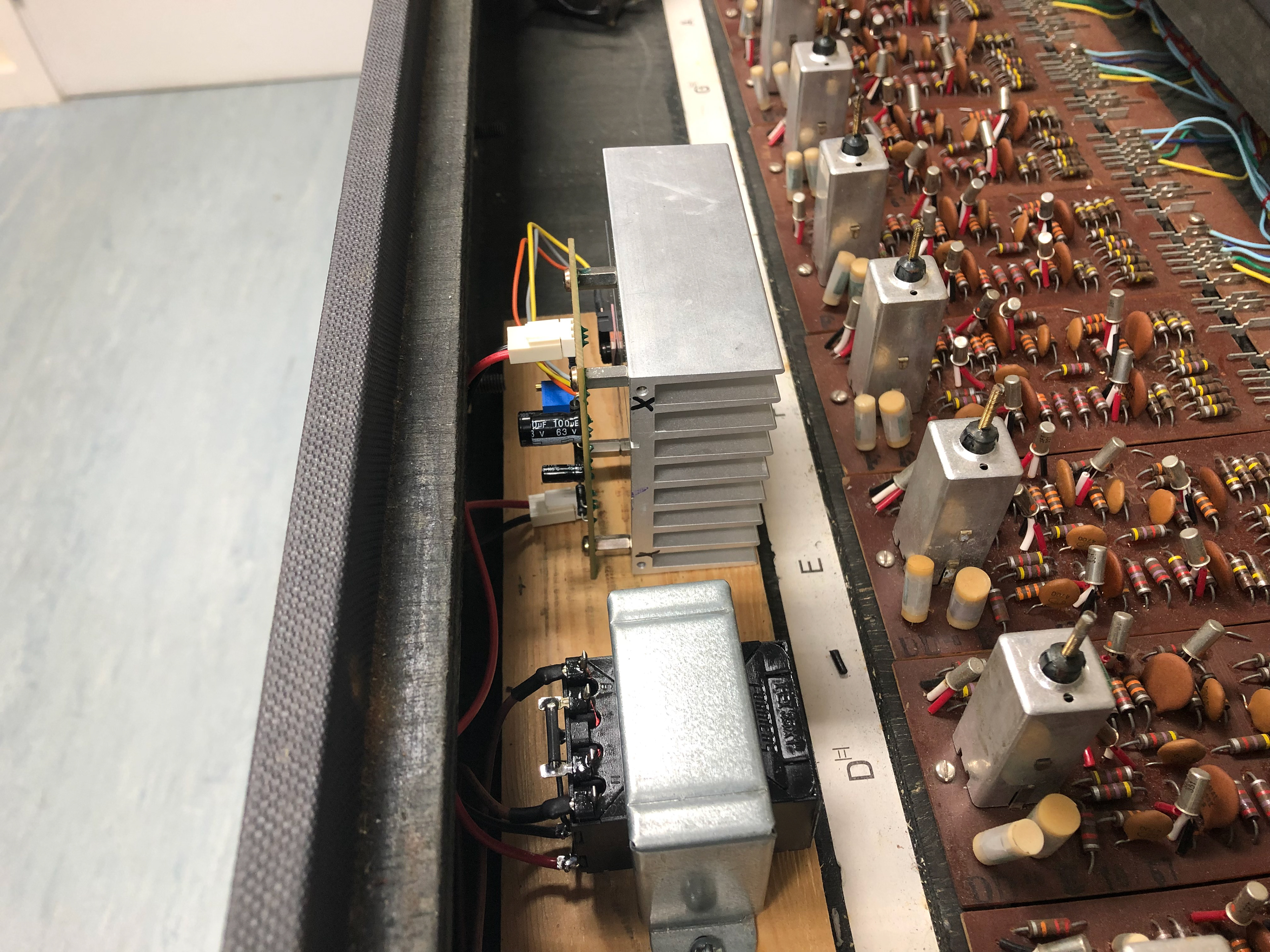

A new 240v regulated power supply
A new 240v regulated power supply

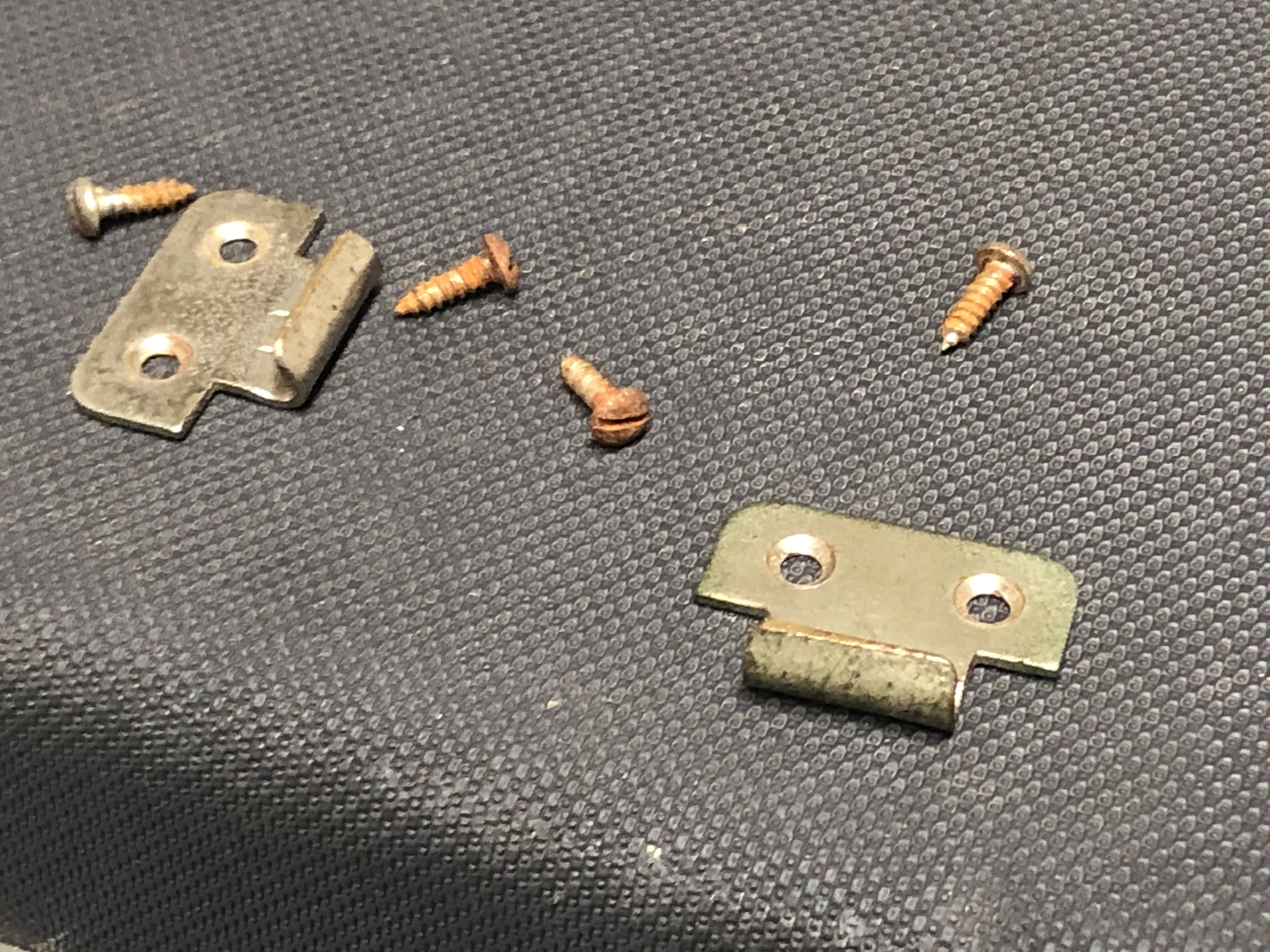

Old worn hinges
Old worn hinges

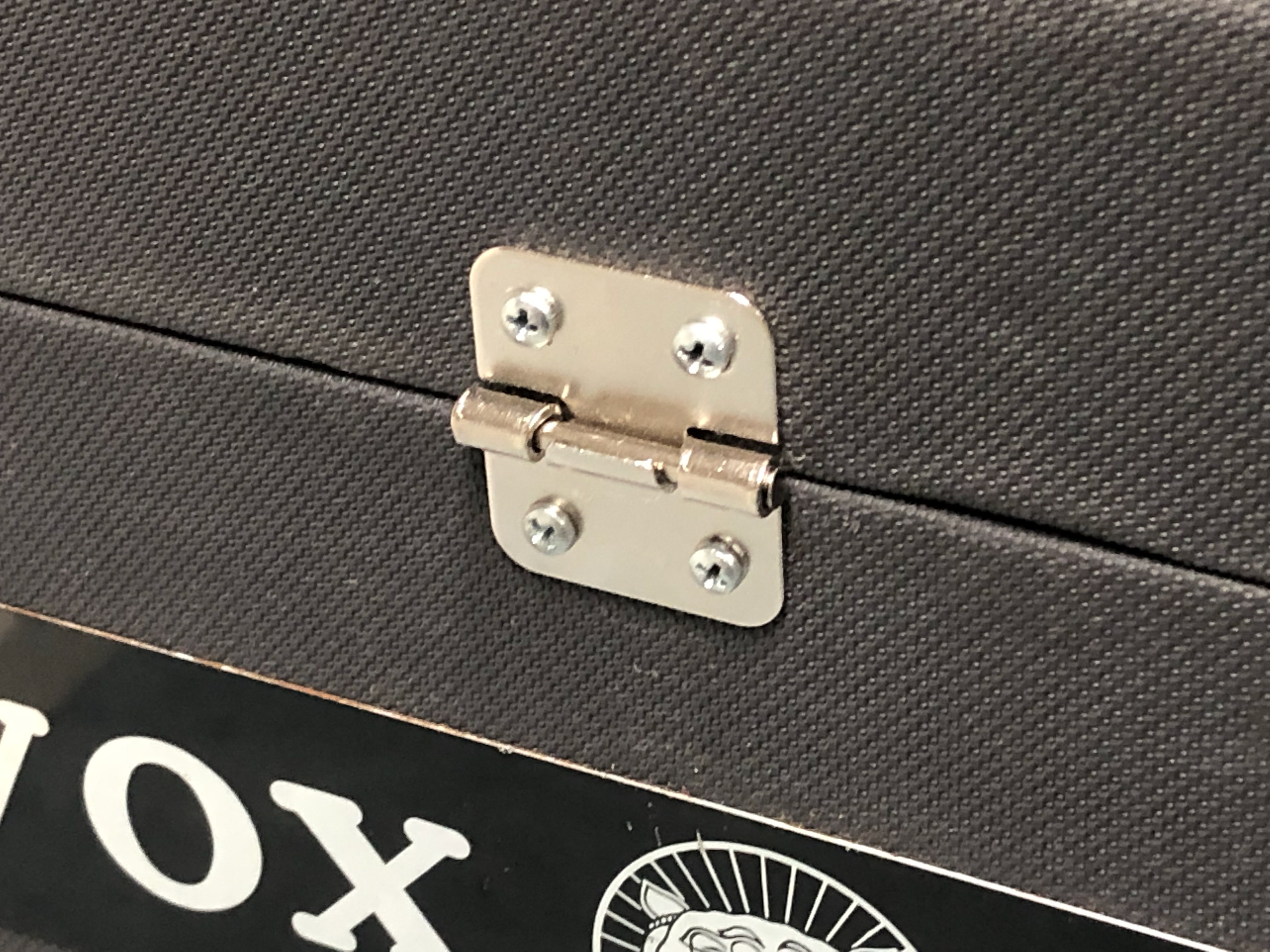

Nice new shiny replacements
Nice new shiny replacements
